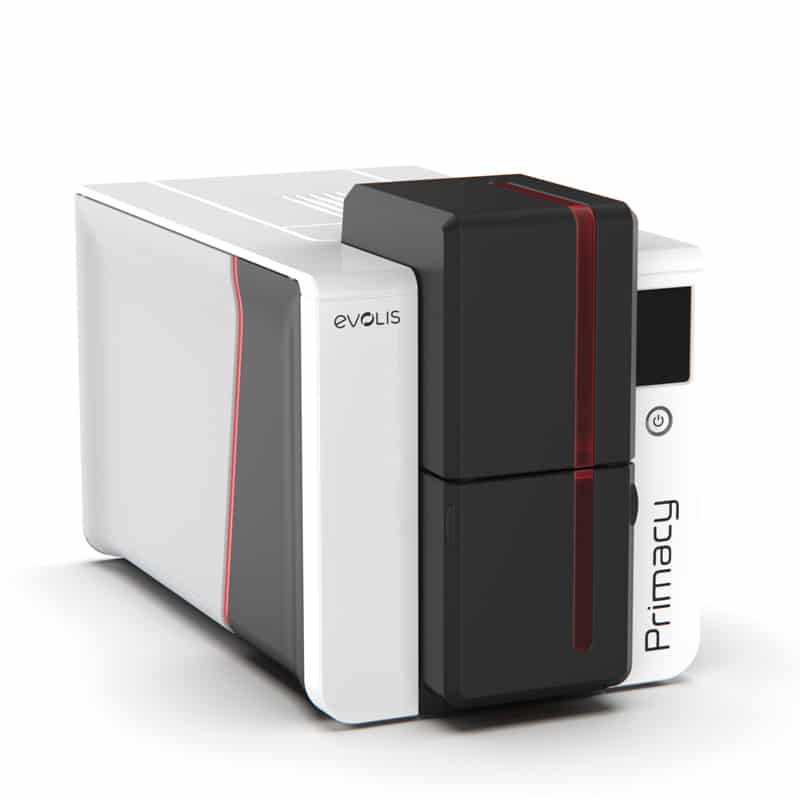

Evolis Primacy 2

GENERAL FEATURES

• Color sublimation directly on the card and resin thermal transfer
• Rewritable card printing
• Single or double-sided print module
• Print resolution:
• – In color and monochrome: 300×300 dpi & 300×600 dpi
• – In monochrome: 300×1200 dpi
• Print optimization via color profile
• User interface: LED panel or LCD touch screen

PRINT SPEED

• Single-sided (YMCKO): up to 280 cards/hour
• Double-sided (YMCKOK): 170 cards/hour
• Single-sided (YMCK) with lamination module: up to 215 cards/hour

CARD MANAGEMENT AND SPECIFICATIONS

• Feeder capacity: 100 cards (0.76 mm – 30 mil)
• Hopper capacity: 100 cards (0.76 mm – 30 mil)
• Rear hopper capacity: 50 cards (0.76 mm – 30 mil)2
• Card types: PVC cards, composite PVC cards, PET cards, ABS cards, and rewritable card

PORTS/CONNECTIVITY

• USB (cable supplied) and Ethernet
• Wireless connection 802.11b/g on Wireless range

EVOLIS HIGH TRUST® RIBBONS

To maximize the quality and lifetime of the printed cards, the service life of the print head, and the overall reliability of your printer, use Evolis High Trust® ribbons.

• Automatic recognition and setup
• Ribbon cassettes for one-step installation or an EASY4PRO offer without cassette for users who want to reduce their environmental impact.
• – YMCKO: 300 prints per roll
• – YMCKOK: 200 prints per roll
• – YMCKOO: 250 prints per roll
• – Black monochrome: 2000 prints per roll1

LAMINATION (OPTION)

• Standard single and double-sided
• Extensive laminate offering: patches (600 sides per roll) and varnishes (1,200 sides per roll), with or without hologram, alternate laminates (contact chip cut-out / magnetic stripe cut-out).

List of laminates available at www.evolis.com

OPTIONS INTEGRATED ON SITE

• Double-sided activation key ∙ 200-card feeder
• LCD touch screen
• Lamination module

SECURITY

• Kensington® security lock
• Optional mechanical locking system
• Print head protection during maintenance or ribbon changes ∙ Erasing sensitive data from the printer memory
• Kineclipse® optional
• Optional internal scanner reader

ENCODING MODULES

• Magnetic stripe encoder ISO 7811
• Contact smartcard encoders
• Contactless smartcard encoders
• Dual smartcard encoders (contact / contactless) ∙ Options can be combined
• Factory or on-site installation

SOFTWARE

• Printer management by Evolis Premium Suite for Windows, Mac, and Linux
• Evolis SDK available for easy product integration
• Supplied with cardPresso XXS for designing and printing badges

OS compatibility list available at www.evolis.com

WARRANTY CONDITIONS

• 3 years for the printer
• Optional extended warranty available
