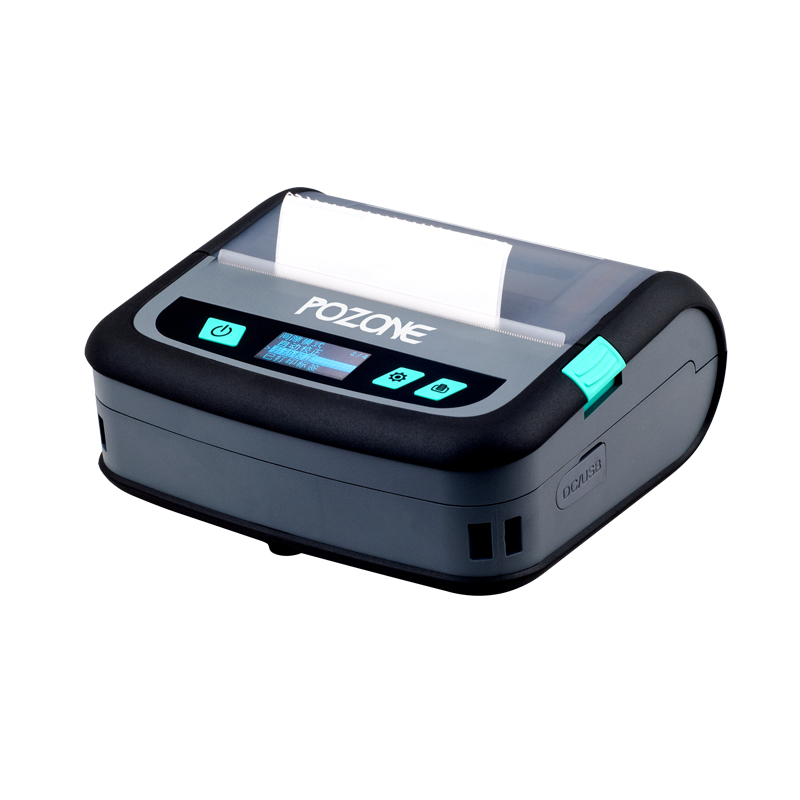

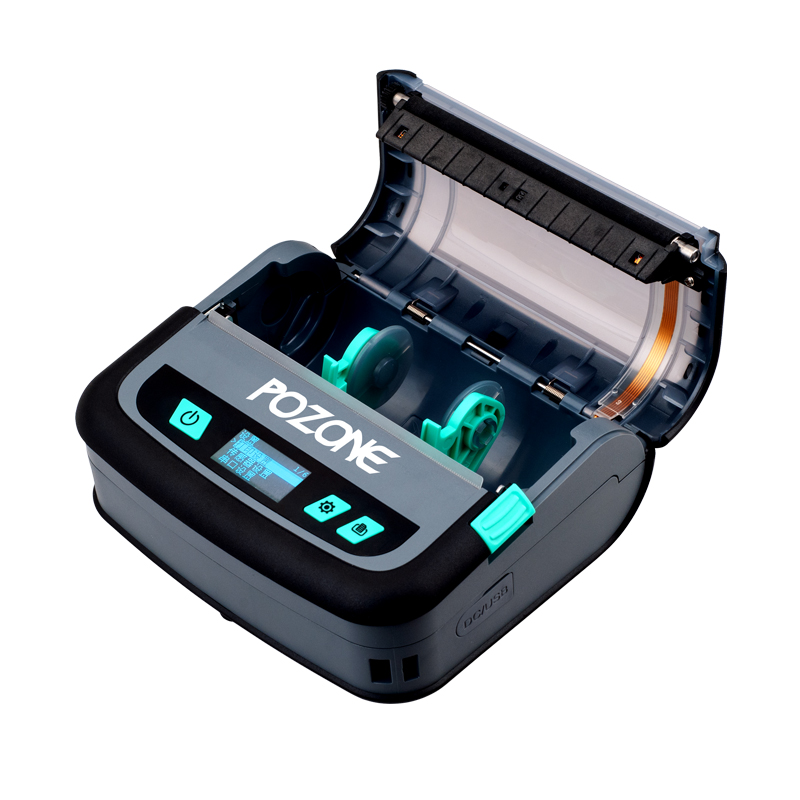

POZONE MP-410B MOBILE PRINTER

Printing

Resolution

203DPI

Printing method

Direct Thermal

Max.print speed

Max.100mm (3.937″)/s

Max.print width

108mm (4.25″)

Max.print length

1778mm (70″)

Media

Media type

Continuous, gap, blackmark

Media width

40mm~112mm

Media thickness

0.06mm~0.254mm

Paper roll diameter

50mm

Performance Features

Processor

32-bitCPU

Memory

8MBFlashMemory/8MBSDRAM

Interface

Standard version: USB + Bluetooth Optional: USB+WIFI/NFC

Screen

1.3Ó OLED

Sensors

①Gap sensor ②Cover opening sensor ③Blackmark sensor

Performance Features

Internal fonts

8alpha-numeric bitmap fonts, Windows fonts are downloadable from software.

1D barcode

Code39, Code93, Code128 UCC, Code128 subsets A, B, C, Codabar, Interleaved 2of5, EAN-8, EAN-13,

EAN-128, UPC-A, UPC-E, EAN and UPC2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST

2D barcode

PDF-417, Maxicode, DataMatrix, QRcode

Rotation

0¡、90¡、180¡、270¡

Emulation

TSPL、EPL、ZPL、DPL、CPCL、ESC/POS

Physical Features

Dimensions

150mm(L)x131mm(W)x64mm(H)

Weight

0.45 kg

Reliability

Printer head life

30 Km

Software

Operation system

Windwos/Linux/Mac/Android/iOS

SDK

Windows/Android/iOS

Power supply

Input/Output

Input:AC100-240V,0.5A50-60Hz; Output：DC5V/2A

Battery life

7.4V/2500mAh

Options

Optional accessories

①Shoulder strap ②Protection bag ③Dual-slot battery charger

Environmental Conditions

Operation environment

5~40¡C（41~104¡F），Humidity:25~85% no condensing

Storage environment

-40~60¡C（-40~140¡F），Humidity:10~90% no condensing
