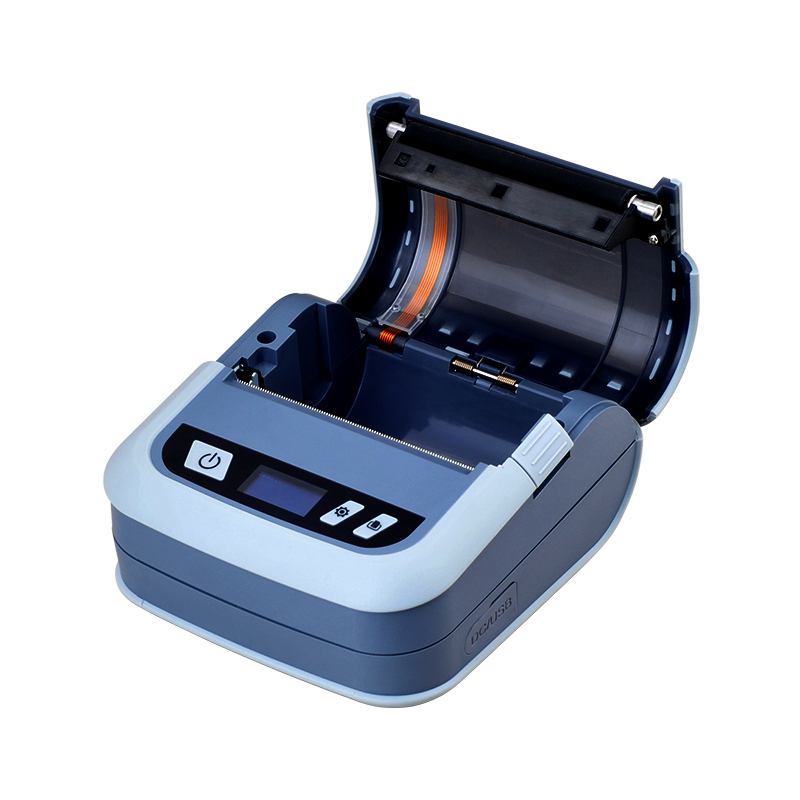

POZONE MP-310B MOBILE PRINTER

Printing

Resolution

203DPI

Printing method

Direct Thermal

Max. print speed

Max.70mm (2.7″)/s

Max. print width

72mm (2.8″)

Max. print length

1778mm (70″)

Media

Media Type

Continuous, gap, blackmark

Media width

20mm~76mm

Media thickness

0.06mm~0.254mm

Label roll diameter

50mm

Performance Features

Processor

32-bitCPU

Memory

8MBFlashMemory/8MBSDRAM

Interface

Standard version: USB + Bluetooth Optional: USB+WIFI

Screen

OLED (1.3Ó) Resolution:128*64pix

Sensors

Gap sensor Cover opening sensor Blackmark sensor

Fonts/Graphics/Symbologies

Internal fonts

8alpha-numeric bitmap fonts, Windows fonts are downloadable from software.

1D barcode

Code39, Code93, Code128UCC, Code128 subsets A,B,C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13,

EAN-128, UPC-A, UPC-E, EAN and UPC2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST

2D barcode

PDF-417, Maxicode, Data Matrix, QRcode, Aztec

Rotation

0¡、90¡、180¡、270¡

Emulation

TSPL、EPL、ZPL、DPL、CPCL、ESC/POS

PhysicalFeatures

Dimensions

124×108×61mm(D×W×H)

Weight

357g

Reliability

Printer head life

30Km

Software

Operation system

Windows/Android/iOS

SDK

Windows/Android/iOS

Power Supply

Output

DC9V/1A

Battery

7.4V/2600mAh

Environmental Conditions

Operation environment

5~40¡C（41~104¡F），Humidity:25~85% nocondensing

Storage environment

-40~60¡C（-40~140¡F），Humidity:10~90%nocondensing
