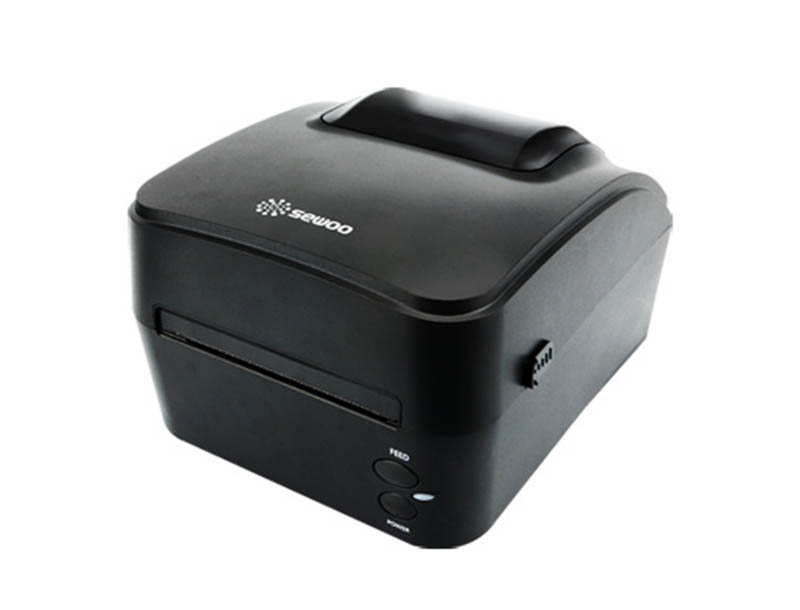

Sewoo LK-B24

LK-B24- 4-inch Thermal Transfer and Direct Thermal Label Printer

Key Feature

• Compact design label printer
• Rapid graphic printing at 127mm/sec
• Paper width adjustable from 20mm to 114mm
• Labelling software ‘Label Cooker’ supplied as a professional solution
• EPL II, ZPL II Command compatible
• Standard interface capabilities: USB, Serial (RS-232C), Ethernet
• Easy to replace paper and ribbon
• The vertical directional interface that is designed for the convenience of replacing the external paper
• Compact size to maximize the space utilization (Lowest Height in its class)

Specification

• PRINTING SPECIFICATION
• METHOD : Thermal Transfer and Direct Thermal
  • SPEED : Max. 127 mm/sec
  • WIDTH : 104 mm (4.1-inch)
  • PRINT LENGTH : 1,000 mm (39.3-inch)
  • RESOLUTION : 203 DPI (8 dots/mm)
• PAPER SPECIFICATION

[ PAPER ]
• TYPE : Label roll, Fanfold
• WIDTH : 20~ 114 mm (0.7-inch ~ 4.48-inch)
• THICKNESS : 0.06 mm ~ 0.20 mm
[ RIBBON ]
• WIDTH : 110mm
• LENGTH : 75M

• INTERFACE
• STANDARD : USB, Serial(RS-232C), Ethernet
